Choosing between a 203 DPI and 300 DPI label printer is not simply a question of buying the model with the higher number. The right resolution depends on label size, barcode density, text height, printing speed, software output and the distance at which the barcode must be scanned.
For shipping labels and general retail labels, 203 DPI is often sufficient and economical. For small product labels, dense 2D codes and fine text, 300 DPI can provide a meaningful advantage. This guide explains the difference and gives buyers a practical way to choose.
DPI means dots per inch. A 203 DPI printhead places approximately 203 heating elements across one inch, commonly expressed as 8 dots per millimeter. A 300 DPI printer uses approximately 300 dots per inch, or 12 dots per millimeter.
More dots allow the printer to create smaller features with finer edges. That can improve small text, narrow barcode modules, logos and compact label layouts. It does not automatically improve every print. Label material, heat settings, speed, printhead condition and artwork quality also affect the result.
| Factor | 203 DPI | 300 DPI |
|---|---|---|
| Dot density | About 8 dots/mm | About 12 dots/mm |
| Best fit | Shipping, inventory, shelf and general-purpose labels | Small labels, fine text, compact barcodes and detailed graphics |
| Typical cost | Lower | Higher |
| Potential speed | Often faster for comparable models | May print more slowly because more dots are produced |
| Artwork tolerance | Requires layouts suited to the coarser dot grid | Provides more room for fine detail, but still needs correct artwork |
A 203 DPI printer is usually the most cost-effective option when labels are large enough to use comfortable barcode and text sizes. Common applications include:
Many logistics workflows are designed around 203 DPI printers, so templates, drivers and label software are widely available. If your barcode already has adequate width and quiet zones, increasing resolution may not improve scan reliability enough to justify the extra cost.
A 300 DPI printer is useful when the available label area is limited or the design contains small elements that a 203 DPI dot grid cannot reproduce cleanly. Typical applications include:
Higher resolution is especially helpful when reducing the physical size of a barcode. However, the barcode must still follow the symbology’s dimensional rules and the scanner’s resolution limit. A 300 DPI printer cannot rescue a design that is too small, lacks quiet zones or has poor contrast.
Every barcode is built from modules: the narrowest bars or square cells used to encode data. The printer must represent those modules with a whole number of dots. If the requested module width falls between dot positions, the software may round it, causing uneven bars or cells.
This means a label designed at one resolution should not always be sent unchanged to a printer with another resolution. A 203 DPI template converted directly to 300 DPI can change physical dimensions if the software treats pixel counts as fixed. Define the label in millimeters or inches and verify the output at the printer’s native resolution.
Resolution is only one part of print quality. Before blaming DPI, check these variables:
High speed gives the printhead less time to heat each dot. Small barcodes or fine text may improve when speed is reduced. Use the lowest speed that still meets production requirements.
Too little heat creates faint bars; too much heat can spread the printed image and close narrow gaps. Calibrate darkness for the specific label material and ribbon, if used.
Direct thermal printing uses heat-sensitive media and is convenient for short-life labels. Thermal transfer uses a ribbon and is often selected for longer life, resistance or specialized materials. Resolution does not replace the need to choose the correct print method.
Rough, coated or incompatible label stock can limit edge definition. Test the actual media rather than judging the printer using a different sample roll.
Dust, adhesive residue and worn heating elements cause missing lines and inconsistent bars. Regular cleaning is essential at both 203 and 300 DPI.
Some industrial printers offer 600 DPI for extremely small labels, very fine graphics or specialized manufacturing and healthcare applications. Most retail, warehouse and shipping projects do not require it. Higher-resolution printheads and replacement parts can cost more, and print speed may be lower.
Before specifying 600 DPI, confirm that 300 DPI cannot meet the smallest text and barcode requirements. A pilot print and scan test is more reliable than selecting resolution from a feature list.
Start with 203 DPI when printing general shipping, inventory or retail labels. Move to 300 DPI when labels are small, text is fine, barcodes are dense or the layout must fit more data into limited space. Consider 600 DPI only for specialized, extremely detailed work.
Before purchasing in volume, print the final label design on the proposed model and scan it using the intended barcode scanner. Test several labels at normal speed, darkness and working distance. This catches template, media and compatibility problems that a specification sheet cannot show.
The best label printer resolution is the lowest DPI that consistently produces readable text and scannable barcodes at the required label size. For many operations, that is 203 DPI. For compact product labels and dense symbols, 300 DPI provides the extra precision needed.
Explore WODEMAX label printers, or contact our team with your label dimensions, barcode type, daily volume and interface requirements for a more accurate recommendation.

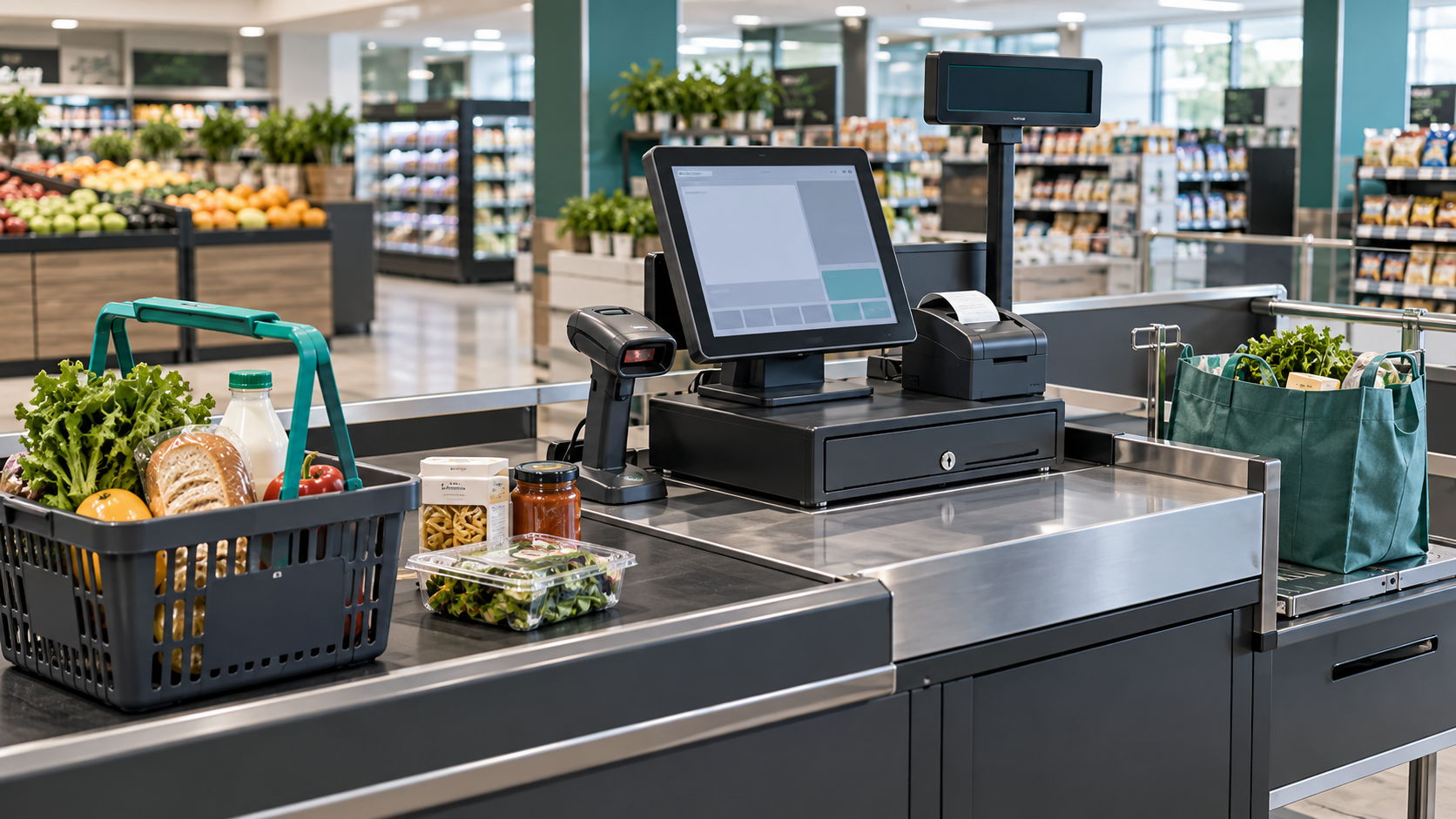

Retail Checkout Counter Layout: A Practical Equipment and Workflow Guide
