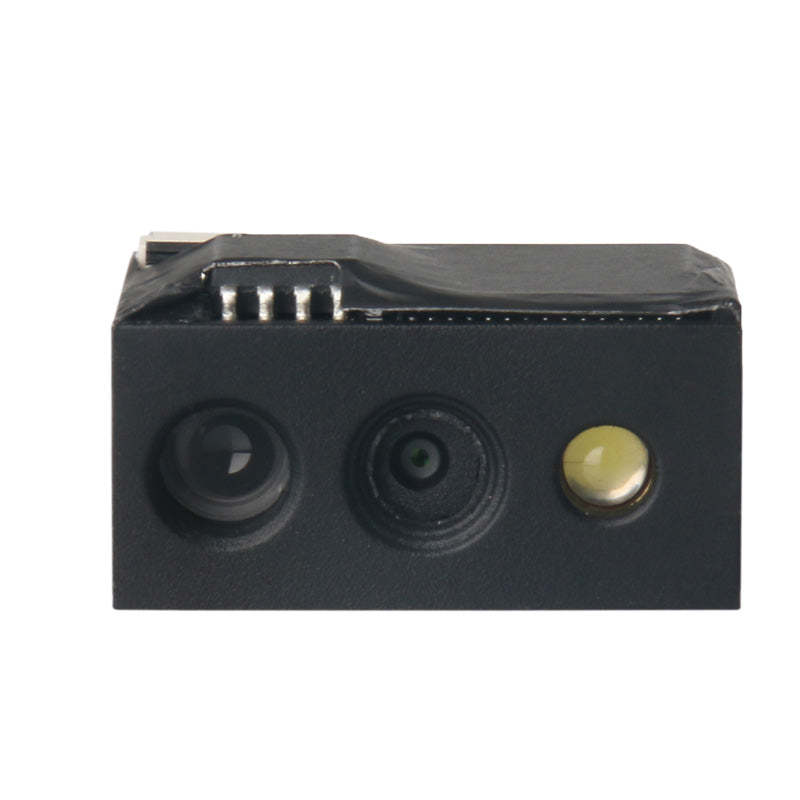

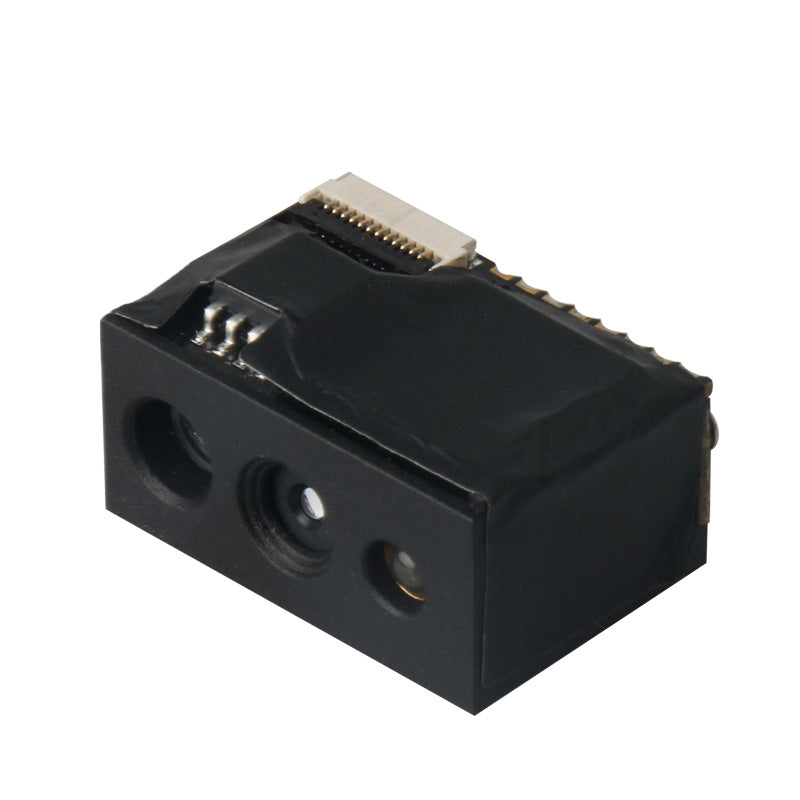

Features☆ Mini size, widely used in wireless machine, self-service terminal.
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ High brightness, dark environment scanning, low power consumption.
☆ Interface: USB, TTL.
☆ Support multiple systems and languages, secondary development.
▅ Lockers ▅ Mobile coupons, tickets
▅ Medical research ▅ Mobile payment barcode scanning
▅ Lottery machines ▅ Self-service terminals
▅ Queuing calling equipment ▅ Self-service vending machines
▅ Microcontroller development
| Scan Type | CMOS |
| Light Source | White light |
| CPU | 32-bit |
| Resolution | 640*480 |
| Reading precision | ≥4mil/0.1mm（PCS90%,CODE 39） |
| Decoding speed | 35CM/S |
| Depth of field | 20-500mm |
| Scan Mode | Manual, Auto sense, command trigger |
| Scan angle | Pitch:±60°, Roll: ±360°, Skew: ±55° |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Codabar（NW-7），MSI，GS1 Databar(Omnidirectional, Limited, Expanded)， etc. 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， Aztec，etc. |
| Weight | 3.5g |
| Dimension | 21.4mm L * 15.8mm W* 11.6mm H |
| Communication | USB(USB-KBW、USB-COM），TTL |
| Interface Type | FFC 12PIN Pitch 0.5 |
| Power Supply | DC 3.3V 180mA(Work） |
| Operating | -20℃ to 50℃ |
| Storage | -40℃ to 60℃ |
| Humidity | 5% to 95%（non-condensing） |
| Drop Height | 1.2m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| HighTemp. | 60℃ |
| LowTemp. | -40℃ |
| Transport | 10H@125RPM |
