WD-001 is a high-performance 300 thousand pixel embedded 2D image module with advanced CMOS image recognition technology, intelligent image recognition system.
With excellent reading performance, you can easily read barcodes on media such as paper, merchandise, and screen.

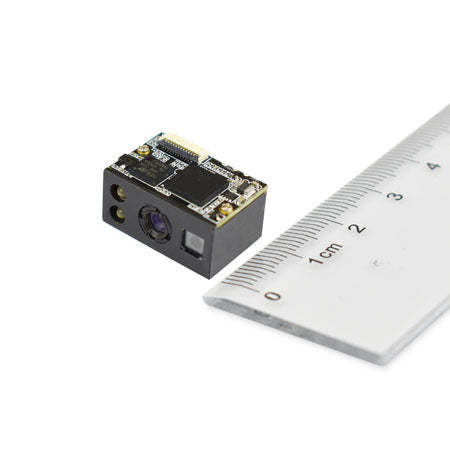

The integrated compact design allows for easy insertion into a wide range of equipment.
Widely used in various types of self-service machines, price checking machines, lockers，etc.
Features:
1. Small size, self-contained fixing holes for easy integration into other equipment.
2. Optional multiple interfaces {USB (KBW, COM), TTL}, suitable for different application.
3. Good reading performance, easy to read both screen and paper barcodes.
4. High-definition camera, can read smaller and complicated 1D 2D barcodes.
5. Support multiple working modes (Manual, Auto sense, command control).
Product parameters:
| Interface |
TTL-232, USB (optional) |
| Bild Sensor |
752 × 480 CMOS |
| Matrix-symbologien |
2D:PDF 417, Datamatrix-graveur (ECC200, ECC000, 050,080,100,140), QR Code
1D:Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, interleaved 2 von 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 von 5, Code 11, Industrielle 2 von 5, standard 2 von 5, Plessey, MSI-Plessey, etc. |
| Beleuchtung |
Rote LED 612nm-624nm, 650nm laser |
| Auflösung |
> 3mil |
| Umgebungs Licht |
0 ~ 100,000 LUX |
| Power Verbrauch |
0,76 W |
| Betriebs Spannung |
3,3 ± 10% VDC |
| Strom @ 3,3 VDC |
Betriebs Strom230 mA Standby-Strom4mA (USB kommunikation nicht unterstützt); 7mA (USB kommunikation unterstützt) Schlafen Aktuellen<5 uA |
| Abmessungen |
21,3 (W) ×11. 6 (D) ×15. 5 (H) mm |
| Gewicht |
5,0g |
| Betriebs Temperatur |
-20℃ ~ + 60℃ |
