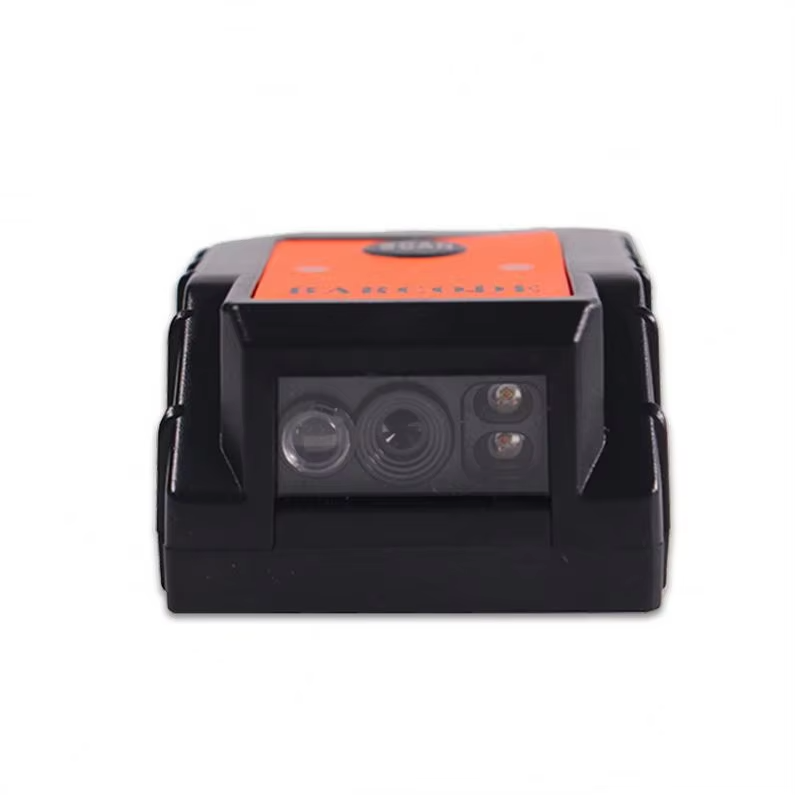

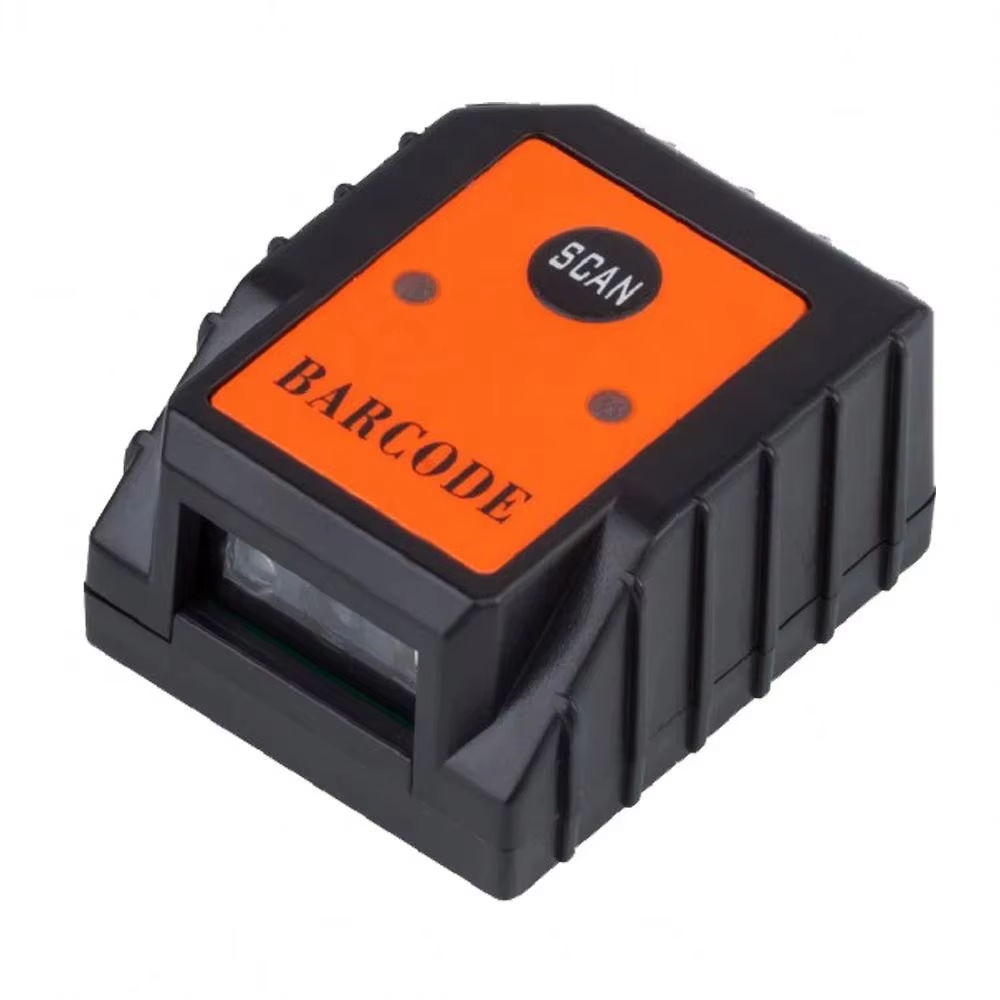

| Type | 2D Fixed Mount Barcode scanner |
| Interface | TTL-232,USB,USB COM |
| Light source | Red light LED |
| Sensor | 640x480 CMOS( 0.3million 、1 million、1.3 million for option) Global exposure CMOS |
| Decode Capability | 1D：Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, Code 11,UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Industrial 2 of 5,Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Standard 2 of 5, Plessey, MSI-Plessey,GS1， |
| 2D：PDF417, Data Matrix, QR Code，Hanxin ，AZTEC，maxicode composite code,Etc. | |
| Depth of Field | 60mm~260mm (13mil) |
| Options | optional: Sensor:1 million+21.36$ Sensor:1.3million+29.91$ |
| Packing List | 50pcs/ctn: 56*24.1*27cm 7.5kg 1 unit: 14*11*4.5 cm 0.15kg |
